Harbor Freight Series 3 Welding Cart Kit

This kit is for the top mount ratchet strap and bottom mount to secure the tanks. The shelf and lead hangers are sold separately.

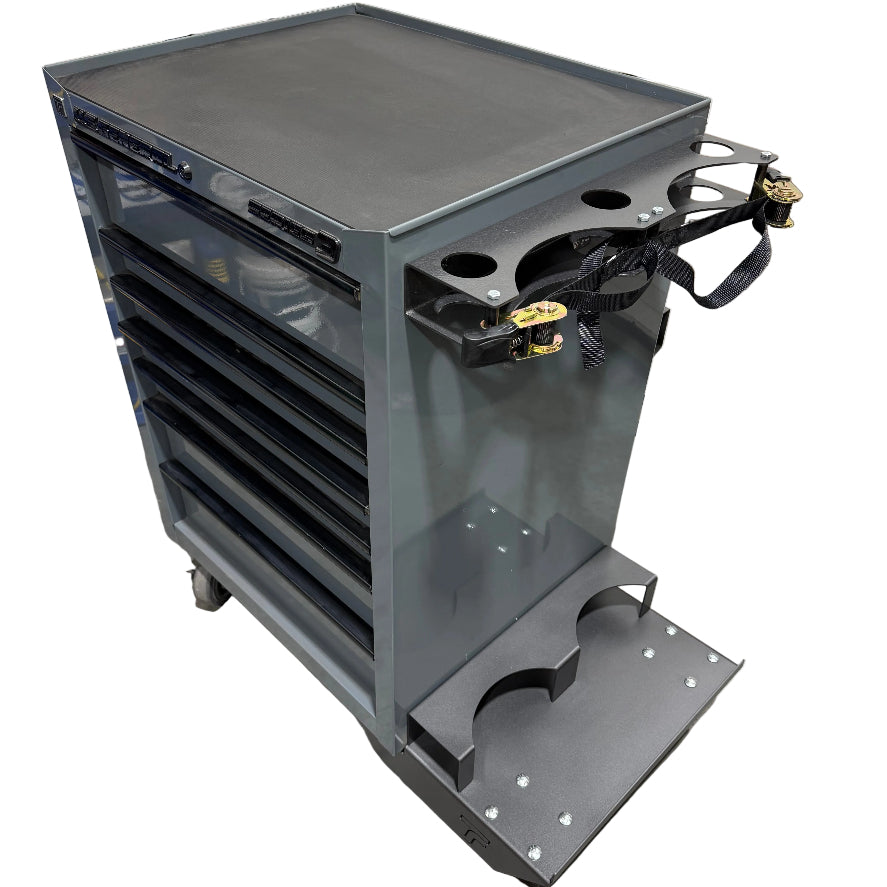

This is a welding cart kit for the Harbor Freight Series 3 27" and 42" Toolbox. It's built out of 11 gauge steel for strength. The kit can accept both the 9" (K)  and 7" (S) tanks. This top mount now has a ratchet strap to hold your bottles securely and 3 places for tig rod holders. The holes measure 2-1/8" to easily fit in your 2" tig rod holder.

The kit uses the existing holes on the tool box, no drilling or welding required. You will relocate the casters to the new bottom deck with the included 3/8 carriage bolts and nuts. All other mounting hardware can be found from the tool box itself.

*We try our best to give enough adjustment in holes and slots so you don't have to enlarge holes or grind on your cart. Harbor freight carts are not exactly the same and you may have to make small adjustments. It's always best to leave your cart mounts loose until everything is in place and then tighten everything down.

Dimensions: The kits overall size is 20-3/8" wide X 16-7/8" long and 7"tall. Once installed, the kit wall add 11-3/4" to the tank side of your cart.

This kit is raw steel and unpainted.
